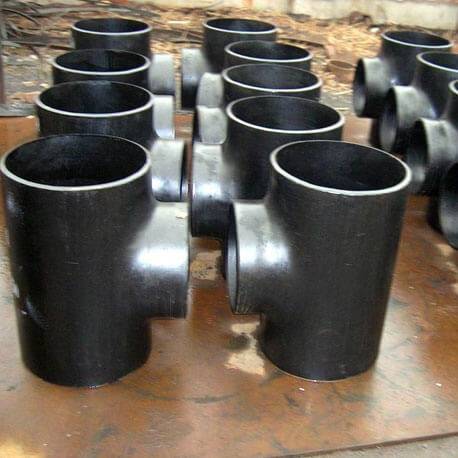

Carbon Steel Pipe Fittings - Preview 1
Carbon Steel

Carbon Steel Pipe Fittings

Product Tags:#90° Elbow#45° Elbow#180° Elbow#Equal Tee#Reducing Tee#Pipe Cap#Equal Cross#Reducing Cross#Piggable Bend#Concentric Reducer#Eccentric Reducer#Lap Joint Stub End#Long Stub End#Short Stub End#End Cap#Long Radius Bend#Pipe Nipple#ASTM A234 Fitting#ASTM A420 Fittings#ASTM A860 Fittings#Reducing Nipple

Product Overview & Applications

Trison Overseas LLP supplies premium Carbon Steel Pipe Fittings in various sizes and shapes for a wide range of industrial applications. The fittings are produced according to international quality standards, ensuring durability, reliable performance, and suitability across varying temperature conditions. Designed for industries including shipbuilding, chemical plants, petroleum processing, and fluid transportation, the fittings meet diverse operational requirements. The company maintains ready inventory, ensures timely delivery, and uses secure packaging to protect products from damage during transportation.

Need Custom Dimensions or Bulk Pricing?

We provide your required technical assistance meeting your needs

Request Quotation

Technical Specifications

Specification
ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Dimension Standard
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9
standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25
Buttwelding Ends
ASME B16.28
standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43
Wrought and Sourced Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range
½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size
1/2" - 10"
Welded Butt Weld Fittings Size
1/2" - 48"
Thickness
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type
Seamless / Welded / Sourced

Technical Data & Weight Charts

Scroll table horizontally →
Nominal Pipe SizeAll FittingsElbows/ Tees180° Return Bends180 Deg Return BendsReducersCaps
NPSWall Thickness (3)Centre-to-End Dimension A,B,C,MBack-to-Face KAlignment of Ends UOverall Length HOverall Length E
½ to 2½Not less than 87.5% of nominal thickness0.060.250.030.060.12
3 to 3 ½Not less than 87.5% of nominal thickness0.060.250.030.060.12
4Not less than 87.5% of nominal thickness0.060.250.030.060.12
5 to 8Not less than 87.5% of nominal thickness0.060.250.030.060.25
10 to 18Not less than 87.5% of nominal thickness0.090.250.060.090.25
20 to 24Not less than 87.5% of nominal thickness0.090.250.060.090.25
26 to 30Not less than 87.5% of nominal thickness0.12……0.190.38
32 to 48Not less than 87.5% of nominal thickness0.19……0.190.38
