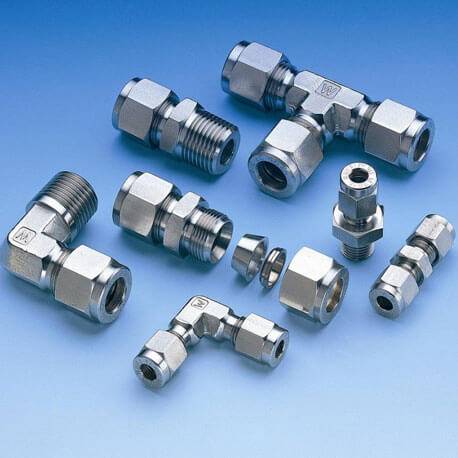

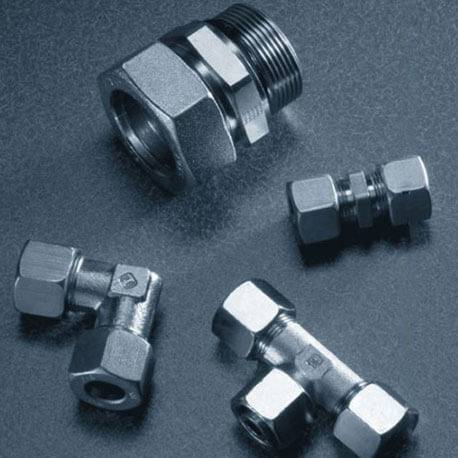

Stainless Steel Compression Tube Fittings

Product Tags:#Tube Cap#Tube Plug#Reducer#Bulk Head Reducer#Male Elbow#Female Elbow#Union Elbow#Male Adapter#Female Adapter#Male Branch Tee#Male Run Tee#Union Tee#Bulk Head Union#Female Branch Tee#Female Run Tee#Union Cross#Weld Connector

Product Overview & Applications

Trison Overseas LLP supplies precision-engineered Stainless Steel Compression Tube Fittings with a strong focus on quality, reliability, and leakproof performance. Using premium stainless steel and advanced supply networks, the company produces fittings suitable for high-pressure, high-temperature, and corrosive environments. Each product undergoes rigorous testing for pressure, vibration, vacuum, temperature, strength, and chemical composition to ensure compliance with international standards. Supported by experienced professionals and modern infrastructure, the company delivers durable, scratch-free tube fittings with excellent surface finish for industrial applications.

Need Custom Dimensions or Bulk Pricing?

We provide your required technical assistance meeting your needs

Request Quotation

Technical Specifications

Size Range

1/16 in. to 2 in. & 2mm to 50 mm.

End Connection Thread Type

End Connection Thread Type :NPT - ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel - ISO 228 | ISO/BSP Tapered - ISO 7, BS EN 10226-1 | SAE (Unified) - ASME B1.1

Dimensional Range

Dimensional Range :1/16 to 2 inches (imperial); 2 to 50 mm (metric)

Working Pressures

Upto 2000 to 6000 PSI

Type

Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories

Technical Data & Weight Charts

Scroll table horizontally →

OD	OD Actual	Thread Designation - Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT
5/16	0.3125	1/16	27
13/32	0.405	1/8	27
35/64	0.540	1/4	18
43/64	0.675	3/8	18
27/32	0.840	1/2	14
1-3/64	1.050	3/4	14
1-5/16	1.315	1	11-1/2
1-21/32	1.660	1-1/4	11-1/2
1-29/32	1.900	1-1/2	11-1/2
