Stainless Steel

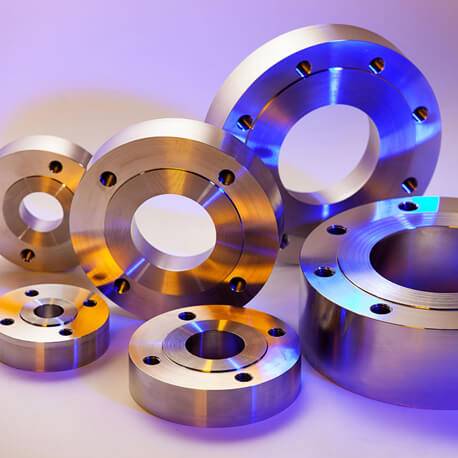

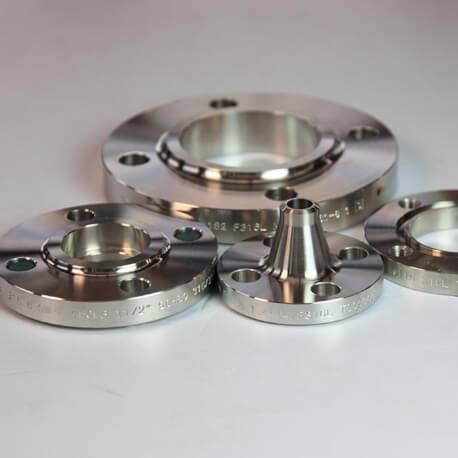

Stainless Steel Flanges

Product Tags:#RTJ Flanges#Plate Flanges#Slip On Flanges#Forged Flanges#Socket Weld Flanges#Lap Joint Flanges

Product Overview & Applications

Trison Overseas LLP supplies and distributes high-quality Stainless Steel Flanges for connecting pipes, valves, pumps, and other industrial equipment. The flanges are available in multiple sizes, specifications, and custom designs, offering reliable sealing, easy maintenance, and excellent durability. Manufactured using premium alloys and international standards, they provide high strength, corrosion resistance, weldability, and performance in extreme temperatures. These flanges are widely used in oil & gas, marine, mechanical engineering, wastewater management, and various industrial piping applications.

Need Custom Dimensions or Bulk Pricing?

We provide your required technical assistance meeting your needs

Request Quotation

Technical Specifications

Specification

ASTM A182 / ASME SA182

Dimension Standard

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard

ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size

1/2" (15 NB) to 48" (1200NB)

Class / Pressure

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type

Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

DIN Flanges

DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.

JIS Flanges

JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K

BS Flanges

BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.

Technical Data & Weight Charts

Scroll table horizontally →

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
Table D Flanges	95	67	4	13	14	-
Table E Flanges	95	67	4	13	14	-
Table F Flanges	95	67	4	13	14	-
Table H Flanges	114	83	4	16	17	-
Table J Flanges	114	83	4	16	17	-
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
ANSI 300 Flanges	95	67	4	13	16	-
ANSI 600 Flanges	95	67	4	13	16	-
